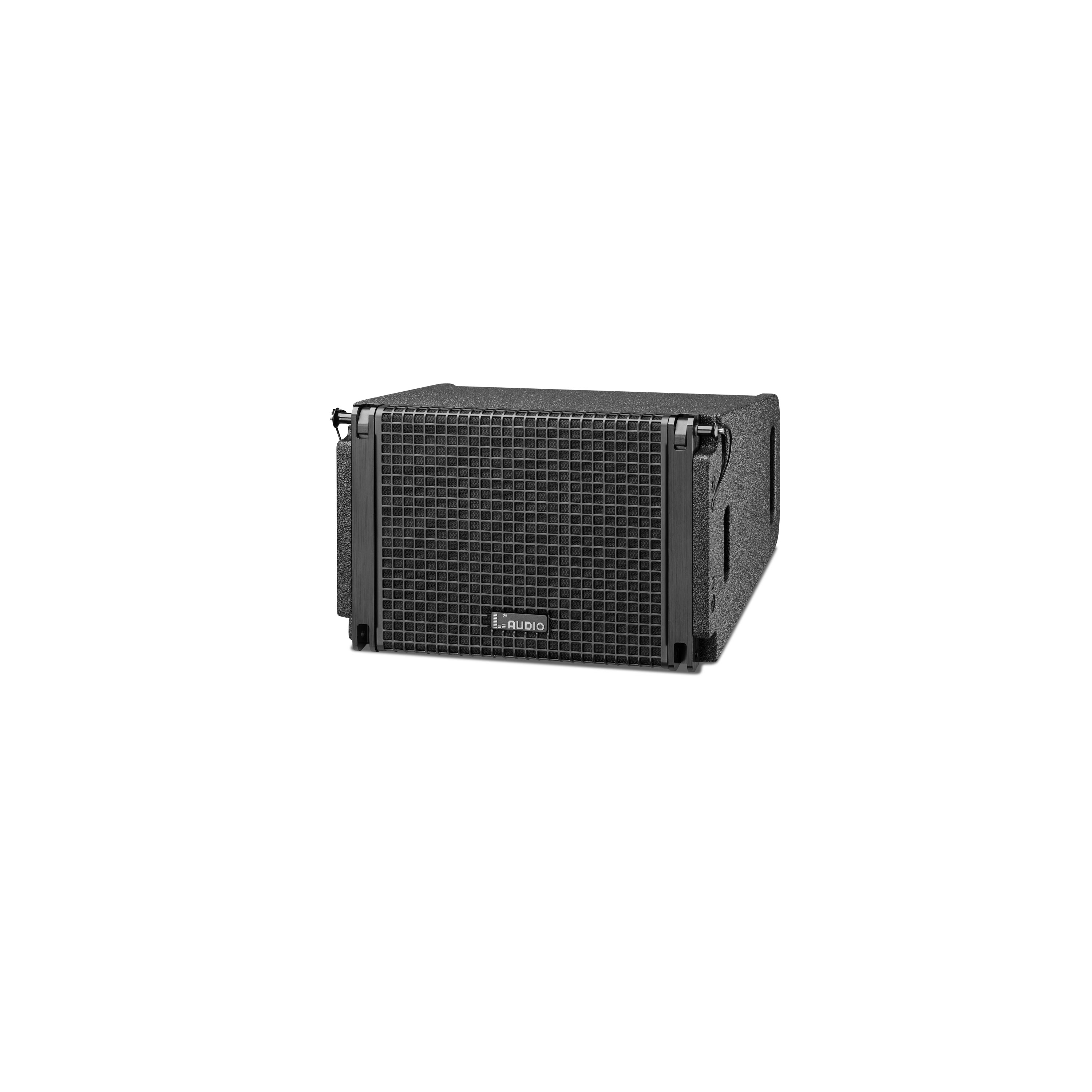

LA SERIES

Through serious and deep research, L AUDIO proudly introduces the LA Series Line Array System. The advanced technologies are widely applied together with special optimization technique results in an excellent performance and high efficiency.  To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall predict and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, L AUDIO engineers know it fairly well.

Applications:
Large and Medium scale venues including stadium, concert hall, auditorium, theatre, clubs, touring show, rental market etc.

Frequency Response        90Hz－18kHz

Power handling                LF 800W (RMS) 3200W (PEAK)

                                         HF 120W (RMS) 480W (PEAK)

Sensitivity                         LF 98dB(1W@1M)

                                         HF 100dB(1W@1M)

Max@S.P.L.                       LF 120dB(PEAK/1M)

                                         HF 126dB(PEAK/1M)

LF section                         8" woofer

Nominal impedance        16 ohm

HF section                        1×1.75"neodymium driver

Nominal impedance        16 ohm

Dispersion                       80°H×12°V

Speaker cables                LF 1(+)1(-)  HF 2(+)2(-)

Input connectors            2×NL4MP speakon

Dimensions                     300×255×400mm(W×H×D)

Enclosure                        Birch Plywood

Net weight                     8kg

Gross weight                 10kg
