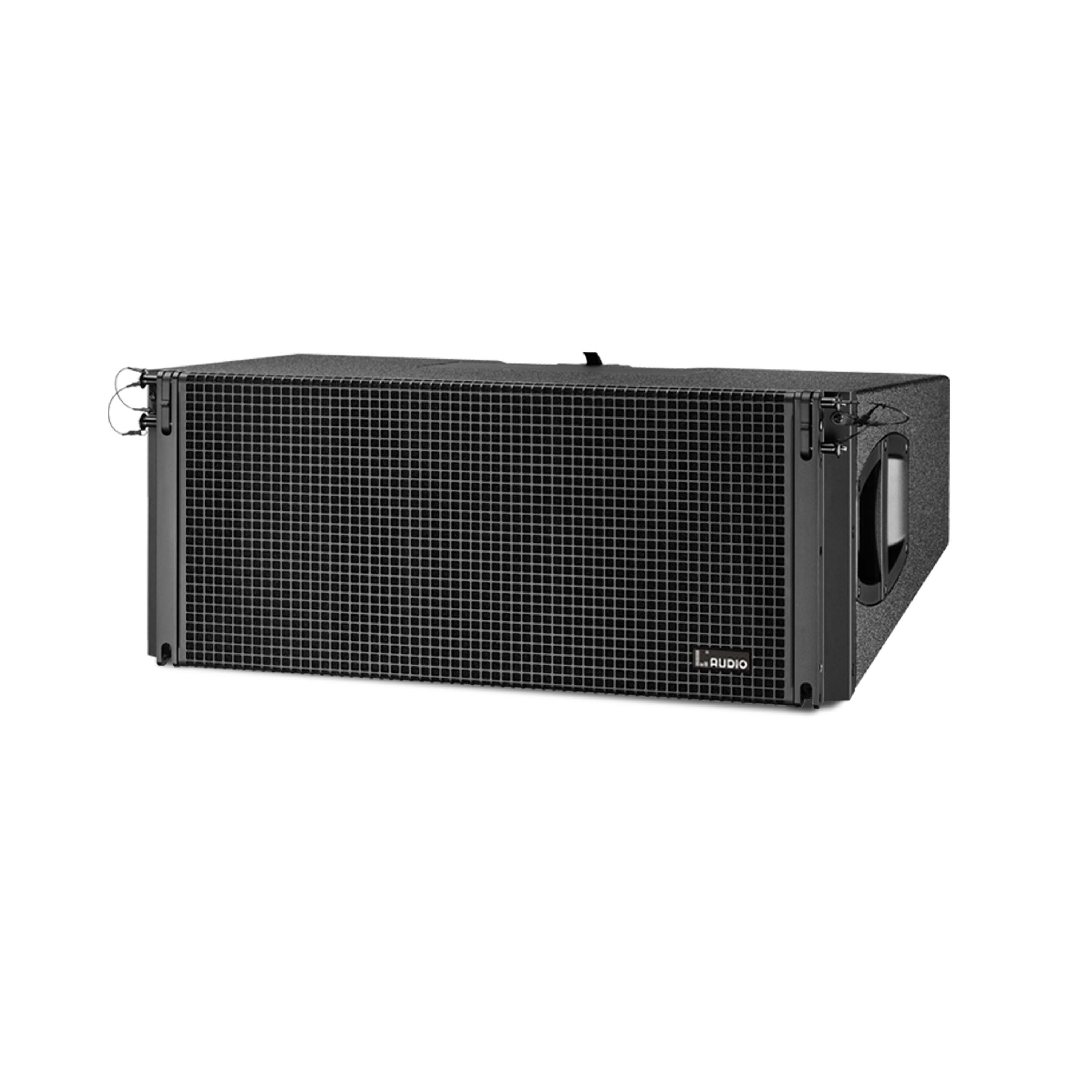

LA SERIES

Through serious and deep research, L AUDIO proudly introduces the LA Series Line Array System. The advanced technologies are widely applied together with special optimization technique results in an excellent performance and high efficiency.  To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall predict and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, L AUDIO engineers know it fairly well.

Applications:
Large and Medium scale venues including stadium, concert hall, auditorium, theatre, clubs, touring show, rental market etc.

Frequency Response              67Hz－18kHz

Power handling                       LF 500W (RMS) 2000W (PEAK)

Max@S.P.L.                              142dB

Component Sections              2×10" neodymium woofer

                                                 1x8" neodymium MID

                                                 2×2.5" neodymium driver

Nominal impedance                8 ohm

Dispersion                               80°H×14°V

Speaker cables                       1(+)1(-)

Input connectors                    2×NL4MP SPEAKON

Dimensions                             700×310×460mm(W×H×D)

Enclosure                                Birch Plywood

Net weight                              34kg

L AUDIO DSP36 / DSP48 PROCESSORS

L AUDIO DS4.10/DS4.13/D12

L AUDIO LA218SUB

L AUDIO LA310SUB

FULL SET SYSTEM PRESETED.
