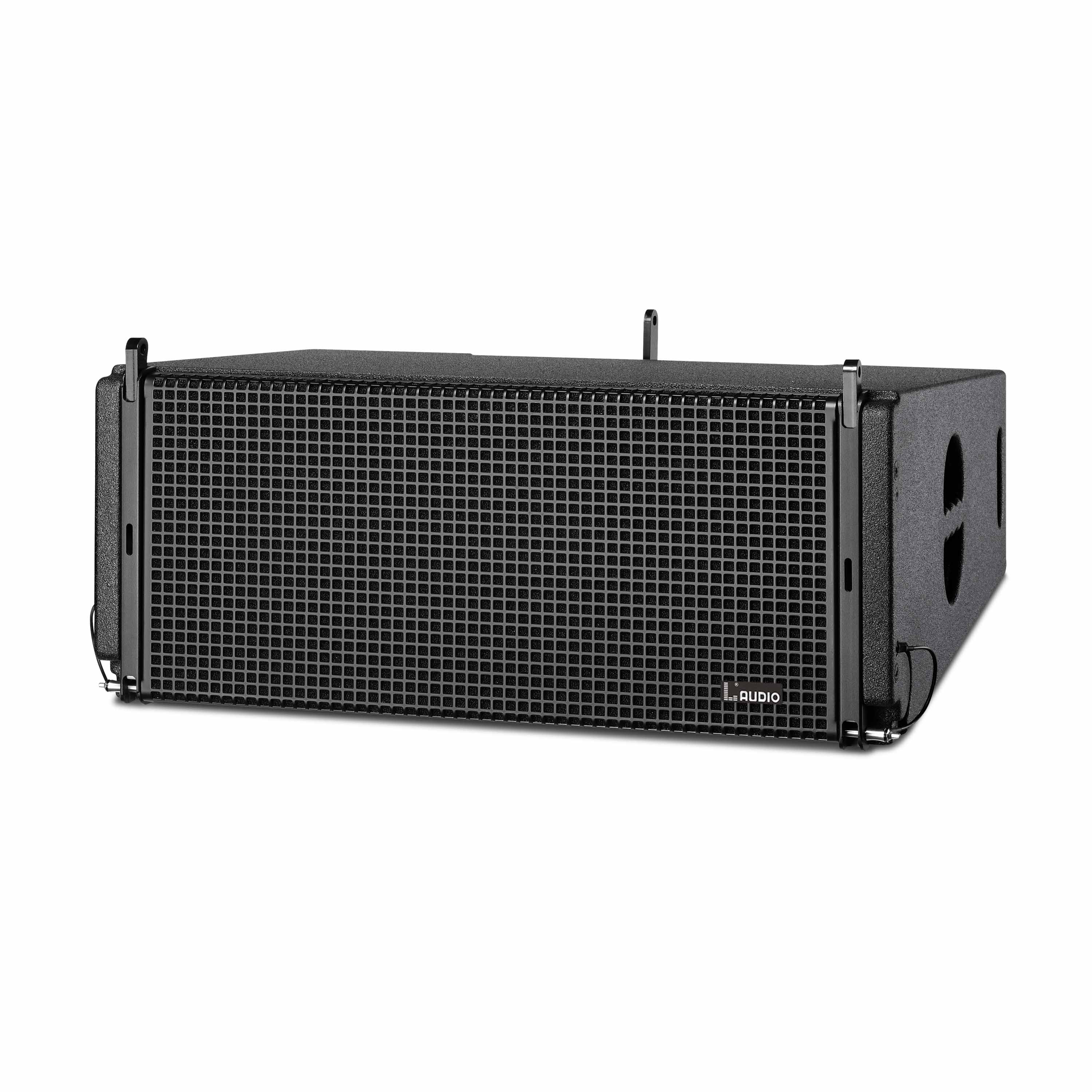

LA SERIES

Through serious and deep research, L AUDIO proudly introduces the LA Series Line Array System. The advanced technologies are widely applied together with special optimization technique results in an excellent performance and high efficiency.  To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall predict and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, L AUDIO engineers know it fairly well.

Applications:
Large and Medium scale venues including stadium, concert hall, auditorium, theatre, clubs, touring show, rental market etc.

Frequency Response        60Hz－18kHz
Power handling                 LF 800W (RMS) 3200W (PEAK)
                                          MF 500W (RMS) 2000W (PEAK)
                                          HF 200W (RMS) 800W (PEAK)
Sensitivity                          LF 98dB(1W@1M)
                                          MF 103dB(1W@1M)
                                          HF 108dB(1W@1M)

Max@S.P.L.                        LF 129dB(PEAK/1M)
                                          MF 125dB(PEAK/1M)
                                          HF 141dB(PEAK/1M)
LF section                          2×10" NEO woofer
Nominal impedance         8 ohm
MF section                        2X8" NEO MID
Nominal impedance         8 ohm
HF section                         2×3" NEO compression driver
Nominal impedance         16 ohm
Dispersion                        80°H×10°V
Speaker cables                 LF 1(+)1(-) MF 2(+)2(-) HF 3(+)3(-)
Input connectors              2×NL8 SPEAKON
Dimensions                      700×310×580mm(W×H×D)
Enclosure                          Plywood
Net weight                        40kg
Gross weight                     46kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
