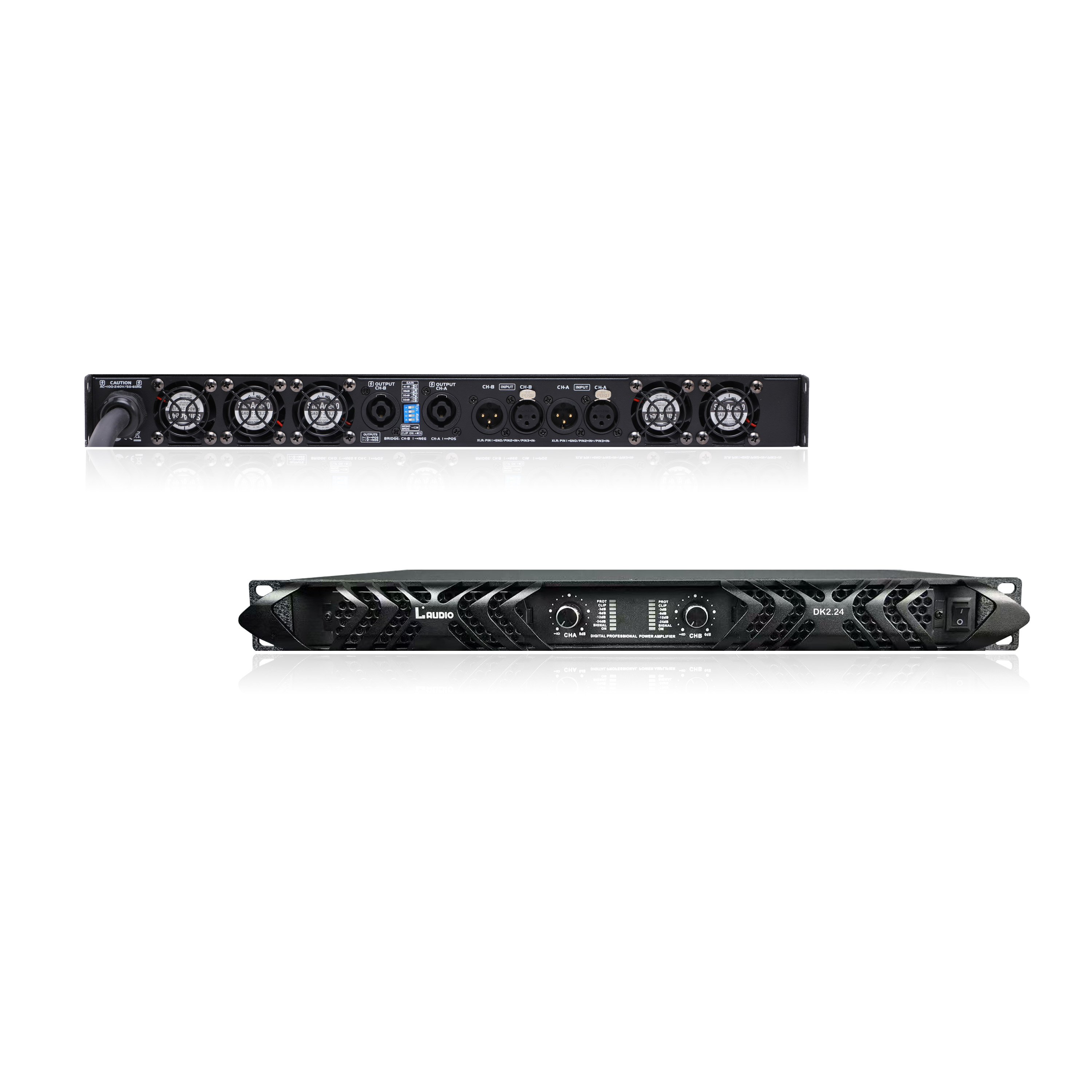

DK SERIES

DK series multi-channel digital power amplifier is a brand-new breakthrough of LAUDIOPRO in the field of power amplifier development.
The DK series power amplifier integrates the latest PFC technology, and self-calibrates timely within the global wide voltage range of 50-350V. Its high efficiency and excellent stability make it easy to cope even in an environment with unstable voltage.  High efficiency and stability are derived from the advanced class D amplifier circuit and SMPS patch power module designed in Europe.  The ultra-high power density and optimized intelligent circuit enable the amplifier to obtain a super output in a small 1U space.

Application:

It is widely used in large-scale stadiums, stadiums, theaters, performing arts halls, concert halls, churches, auditoriums, outdoor mobile performances, high-end bars, high-end KTVs, nightclubs, entertainment halls and other advanced sound reinforcement venues that require high-quality sound.

output power: 8Ω/2400W×2, 4Ω/4100W×2, 2Ω/6300W;

frequency response (0/-1dB, 1W/8Ω): 20Hz～22KHz;

total harmonic distortion 1KHz THD: 0.01- 0.03%,

S/N rate: -104dB; damping coefficient: >-500;

input sensitivity (rated power 8Ω): 1.2V/32Db/26dB;

input impedance:> 10KΩ (balanced/unbalanced):

balanced or unbalanced; Separation: >70

Output category: Class D,

input interface: male/female end XLR:

output interface: Neutrik Speakon,

cooling: 4 fans, airflow from the front panel to the back panel, infinitely variable wind speed, depending on temperature , The machine comes with a wide PFC voltage, and the voltage of 50V-350V is normally used. The net weight of the machine: 7KG/set

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

VAKA PRO AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
