VK Series Power Sequence Management System

Power Sequence Management System is able to follow the timing system starts from the previous stage-by-stage in order to various types of equipment; sequentially from stage to stage down the system before the device shuts down. This would effectively unified control of the connected electrical equipment, avoiding human errors operation, solve the terminal equipment (such as amplifiers, speakers, etc.) may be due to damage caused by such failures, while at the same reducing the on / off with electrical equipment on the impact of current transmission lines. Because of its superior performance, allow the system administrator to bid farewell forever cumbersome switch operation. Electrical equipment used to control the system on / off timing control is sound engineering, television broadcasting systems, computer network systems and other essential elements of electrical engineering.

Application:

Widely used in fixed installations entertainment concert halls, multi-purpose hall, performing arts center, lounge bar, KTV, nightclubs.

1. Maximum input current: 45A

2. Maximum output current of single channel: 30A

3. Working voltage: 90V-260V/50-60Hz

4. Power of each channel: up to 4500W

5. Input and output electricity: AC input voltage = AC output voltage

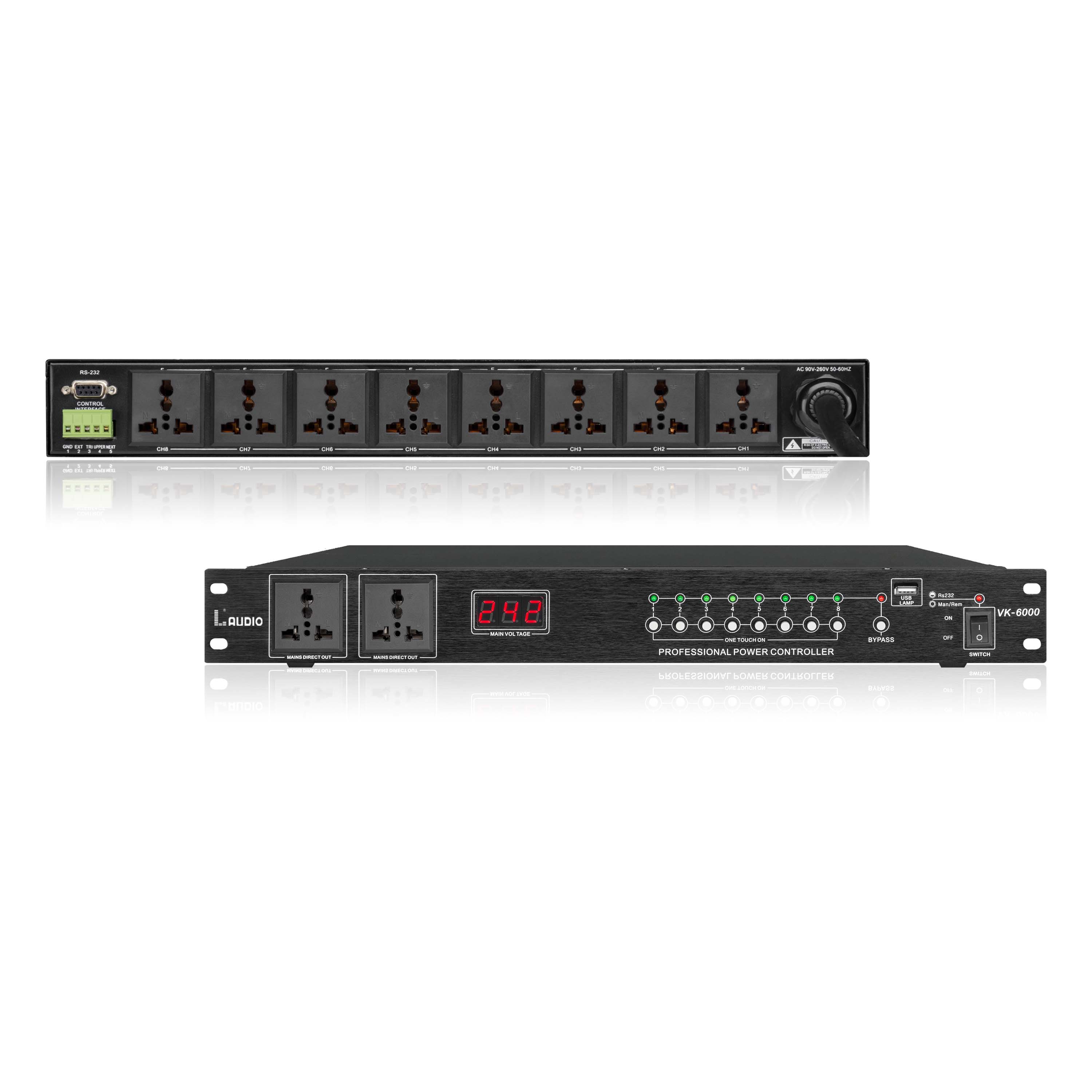

6. Output power socket: The universal socket conforms to European and American standards. There are 8 controlled universal sockets on the rear panel and 2 universal sockets on the front.

7. Socket material: each socket is made of phosphor bronze, which is installed after passing the inspection

8. Interval time of each channel switch: 1 second, each channel with switch indicator light, rear-end configuration

A cutout button (BYPASS)

9. Relay: Songle brand (original authentic)

10. Circuit board: 60% high-purity tin, high-end shunt technology, strengthened and thickened

11. Transformer: switching power supply

12. Built-in power cord: 3*6 square power cord, the wire configuration length is 1.2 meters

13. Voltage display meter: diode digital display voltmeter

14. Chassis height: 1.5U (55mm) (in accordance with the cabinet standard)

15. Switch: rocker switch

16. Controlled function: Yes, (each channel can be controlled individually) with 232 interface, which can be controlled by central control equipment

17. Online mode: Yes, (can support 9 devices online at the same time)

18. Dimension：483mmx45mmx250mm （W x H x D）
