·Using PLL technology, with 200 selectable channels, true diversity anti-jamming operation.

·UHF true diversity reception, eliminate dead spots, more stable use, longer distance.

·Suitable for stage, school and other places.

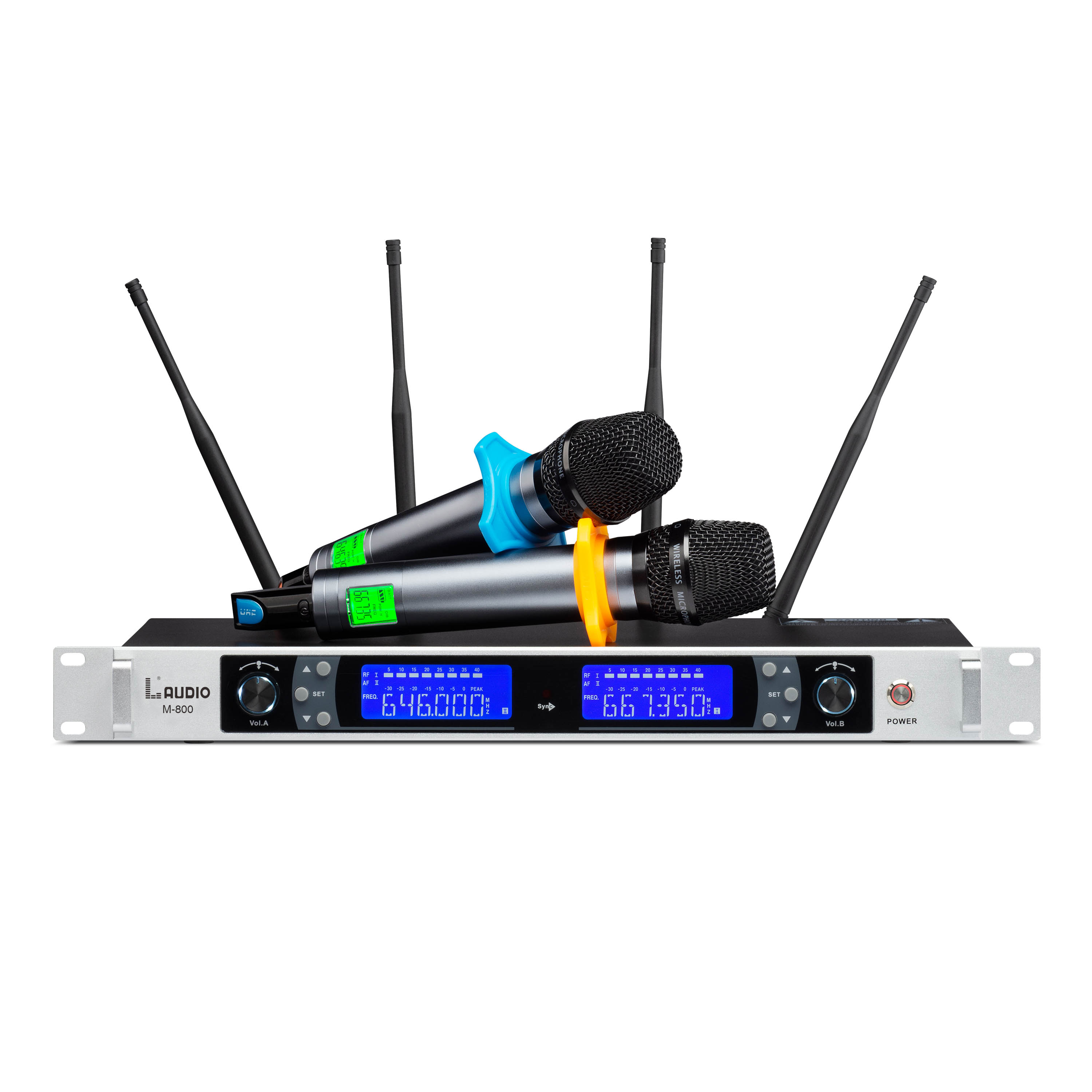

LCD display, the working status of the machine is clear at a glance

·Infrared automatic frequency matching function, more convenient to operate

·The receiver has an automatic scanning function, which can automatically select the most ideal working channel in the frequency band, which is especially convenient when setting up KTV.

·It has mute adjustment (receiving) and radio frequency selection switch (transmitting), suitable for stage performances.

·Adopt field strength, noise and pilot frequency triple mute mode, strong anti-interference, more than 80 sets can be used in the same place at the same time.

·Each set supports 2 transmitters.

RF frequency band: 620-680MHz

Each frequency range: 100MHz

Modulation method: broadband FM

Optional channels: 200

Channel spacing: 250KHz

Frequency Stability: + 10ppm

Maximum modulation degree: + 45KHz

T.H.D.: < 0.5%

Use distance: 150 meters (outdoor environment. Straight line distance)

Working temperature: -10~40℃

More about this source textSource text required for additional translation information

Send feedback

Side panels

Dimension：483mmx45mmx220mm （W x H x D）

MA8 / MA10 / MA16 UHF ANTENNA SYSTEM
